u Soft Works
spread sheet,
and Paint
used to
make this chart
Page views since September 15, 2002
This page was last updated on: January 4, 2017
Click here to go to
Technical Index page
On our diesel Universal marine engine, moving the water heater from the "in series with the heat exchanger position"  to the Thermostat by-pass made it possible to go at the boat  hull speed continuously..

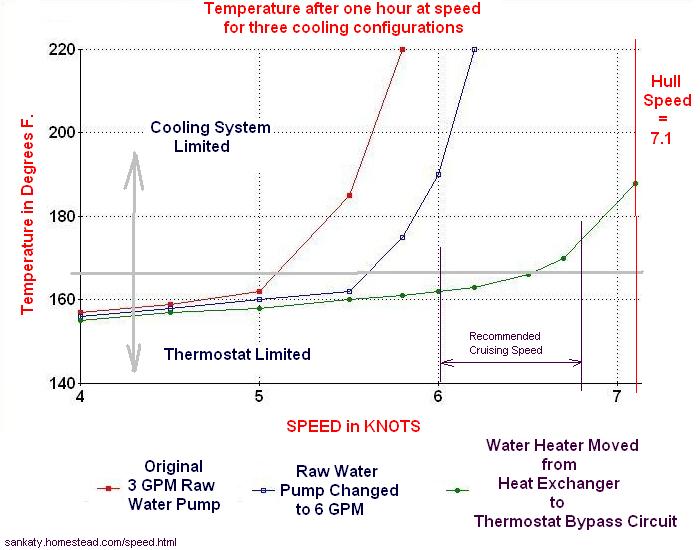

Above are the steady state temperatures at various speeds before and after the changes.  The original red line is with the original 3 GPM Oberdorfer. the blue line after the 6 GPM Sherwood was added.  The green line is after the water heater was moved.  Westerbeke calls this the "positive flow, hot water heater connection in the thermostat bypass circuit"

For details on moving the water heater click here.   For an itemized list of overheating causes click here .

Click here for a description of four different types of water heater connections.    I went from a type 2 to a type 1 and got this dramatic improvement.

Click here to see the incredibly low rate of temperature rise in an engine with a thermostat that has the two holes in it.
15% boat speed increase, by changing
water heater connection?
Click here to see three
versus two blade prop
