1980 32 HP Universal Diesel model 5432 thermostat
Lower housing with four bolt flange attached to engine's head
Hot thermostat in place on
lower housing
Hot thermostat in place on
lower housing
up close
Lower housing
with nice grove and simple outlet to by pass on left.
Hot Thermostat from side with less length on helical
coil spring
Thermostat from top note 1/8" diameter holes at top and bottom of picture
front and back of thermostat

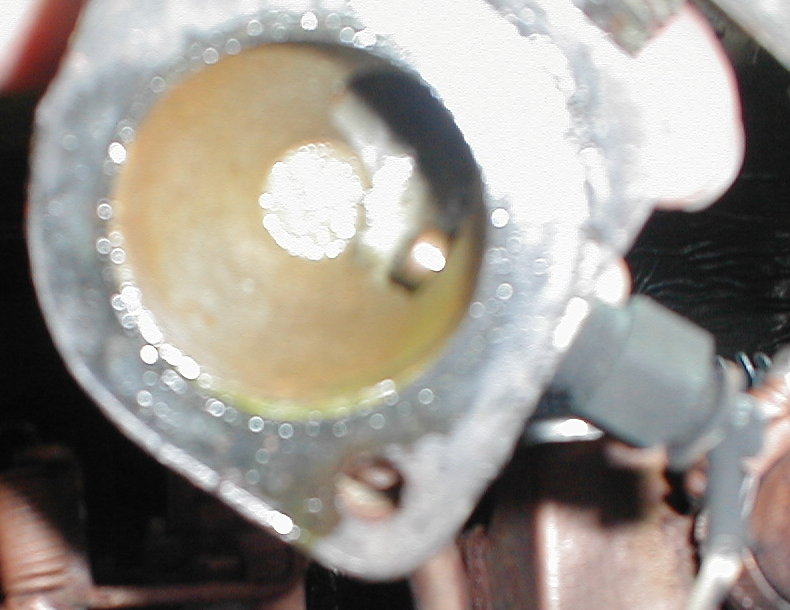

Upper Thermostat housing with the temperature sender in lower right hand side.
Upper Thermostat housing with the temperature sender at bottom and outlet elbow on the right.
Upper Thermostat housing interference ring
on
thermostat mounting flange
Lower Thermostat housing interference ring
on
thermostat mounting flange
Click here to get more details on how thermostats work..
